Home ProductsJoule heating device series

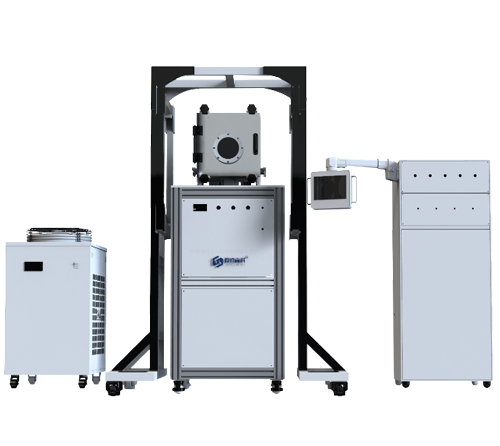

Outfield-assisted Joule heating/self-propagating material preparation platform

Product introduction

The outfield-assisted Joule heating/self-propagating material preparation platform can provide thermal field, power field, magnetic field, quenching and atmosphere auxiliary environment for the material heat treatment process. The auxiliary control of synthetic materials can be realized by controlling the external field strength. The heat treatment modes include joule heating and combustion synthesis. The whole machine modular design, the degree of automatic control is high, there are reaction chamber, electric control cabinet system, external magnetic field coil, water cooling mechanism.

Product parameters and characteristics

System composition	Reaction chamber, external magnetic field coil, electrical control system, water cooler
Joule heating	Temperature heating range: ≤2500℃
	Flash Mode	Fastest heating rate: ≤500℃/S
	Temperature control mode	2500℃ insulation time ≤1 minute, insulation temperature error: ±1℃
		Temperature measurement method: infrared non-contact, accuracy ±1%FS
		Cold vacuum degree: ≤10Pa
		Sintering environment: atmosphere, vacuum (automatic control of cleaning, evacuation, and air intake)
		Graphite crucible size: 482010mm; volume 2ml
		(Different batches and configurations may vary, please refer to the actual product)
Combustion Synthesis	Hot Explosion Mode	Working method: The Joule heat quickly heats up to the material ignition temperature, and the sample undergoes an overall combustion reaction
		Sample properties: solid pressed tablet
		Graphite crucible size: 482020mm (with lid) Volume: 7.5ml
	Self-propagating mode	Working method: The tungsten wire heats up and ignites the combustion aid, which then spreads and burns out.
		Sample properties: solid pressed tablet
		Graphite crucible size: 482020mm (without cover) Volume: 7.5ml
Quenching function	After sintering in various modes, the graphite crucible can quickly and automatically fall into the water or oil in the collection basin for high-temperature quenching.
Magnetic field test parameters	Magnetic field strength: The central magnetic field strength is better than 12.5Gs (1000A/M)


Electric field test parameters	Electric field strength: ≤55V/mm (cold theoretical value)




Operation control system	With PLC as the core control, the whole system automatically executes and feedbacks the process flow according to the set parameters. The control system is simple to operate, stable and reliable
	Standard configuration is optional; if special functions are required, it can be deeply customized

Installation example

Outfield-assisted Joule heating/self-propagating material preparation platform

Contact us

Bulk procurement, customized needs, technical consultation, etc., please leave your needs and contact information, we will get in touch with you as soon as possible
